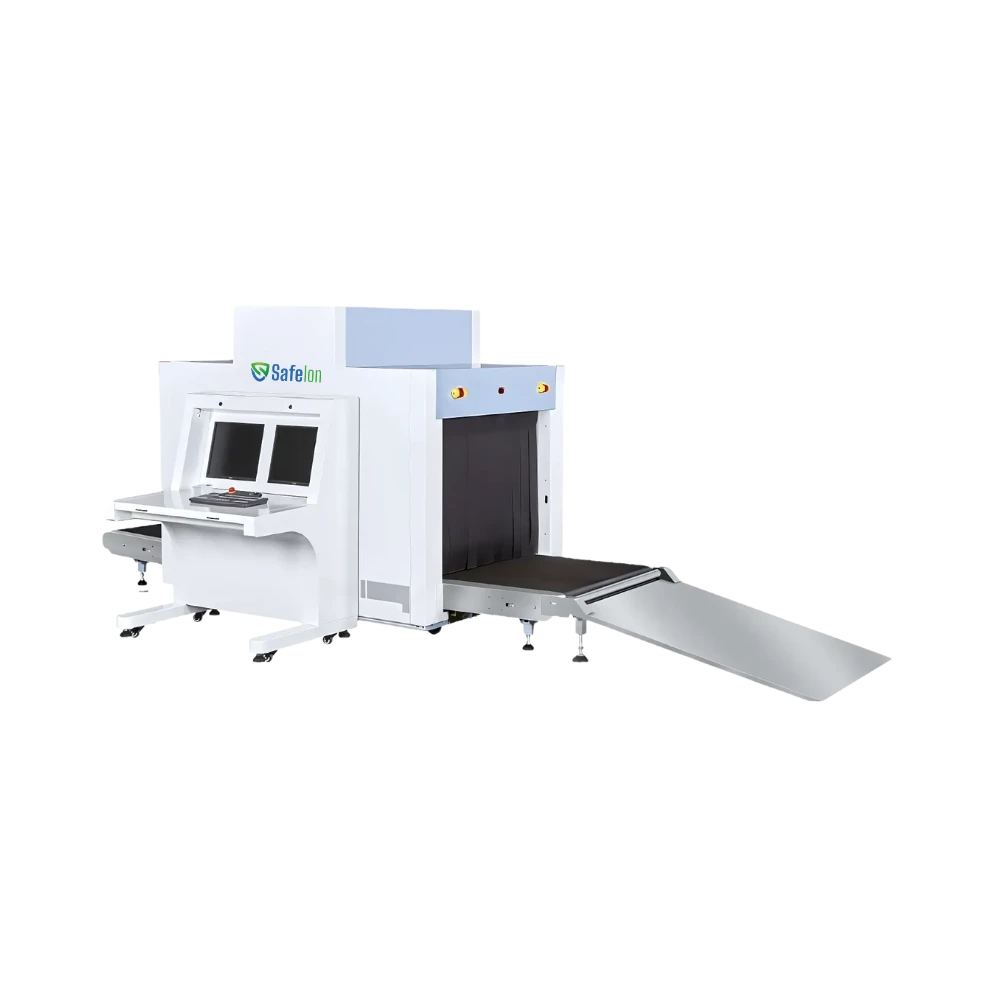

X-Ray Baggage Scanner SFXS-205 delivers a conveyor belt speed of approximately 0.2 m/s, ensuring efficient baggage handling. It utilizes advanced detection technology to ensure accurate inspection of drugs and explosives during security screening. Incorporated with a strong conveyor, the system supports a maximum load of 200 kg for smooth baggage inspection. Equipped with date and time indication, supporting accurate record-keeping and efficient monitoring. Our X-Ray Baggage Scanner is perfect for airports, stations, and malls requiring fast and reliable screening.
Specifications
| Conveyor Speed | 0.2 m/s |
| Conveyor Max Load | 200 Kg |
| Operation System | Windows |
| Wire Resolution | AWG36 |
| Penetration Resolution | AWG30 |
| Energy | Dual |
| Spatial Resolution | Vertical: 1.3mm, Horizontal: 1.3mm |
| Grayscale and Mixture Resolution | 1 to 60 mm |
| Organic Matter Resolution | 1 to 120mm |
| Inorganic Object Resolution | 0.2 to 14 mm |
| Penetration | 34 mm |
| X-Ray Dosage Each Inspection | ≤4.0 µSv |
| Boundary Leakage | <0.5 µSv/h |
| S/N Ratio | <60 dB |
| Film Safety | ASA/ISO1600 Film |
| Operation Temperature | 5℃ to 40℃ |
| Operation Humidity | 0% to 90% |
| Storage Temperature | -20℃ to 60℃ |
| Storage Humidity | 10% to 90% |
| Atmospheric Pressure | 86 kPa to 106 kPa |
| Generator | One |
| X-Ray Generator | 140KV, Oil Cooling, From Bottom to Top |
| Image Storage | 50000 Images |
| Monitor | 21.5 inch LED Screen, 1920 × 1080 Pixels |
| Operation Console | Single Screen Console |
| Power Consumption | 1.0 kW |
| Leakage Current | ≤5.0 mA |
| Power Supply | 220V (±10% to 15%), 50±3Hz |
| Tunnel Dimension | 800 × 650 mm |
| Gross Weight | 650 Kg |
Features
Applications
X-Ray Baggage Scanner SFXS-205 is weel-suited for screening baggage and small packages in airports, shopping malls, event venues, corporate offices, and public transportation terminals.
Standard Accessories
X-ray generator
Console with Monitor
Keyboard and Mouse
Extended table
Power Cable
Electric drum
Safelon X-Ray Baggage Scanner delivers sharp and consistent image quality using advanced sensors and enhanced zoom capabilities. They are designed to accurately detect concealed threats while minimizing false positives during high-volume screening. These are built for non-intrusive inspections and uphold strict safety standards for both operators and travelers. Our X-Ray Baggage Scanner supports vital security operations in airports, metro stations, and private facilities with intelligent control and maximum efficiency.
