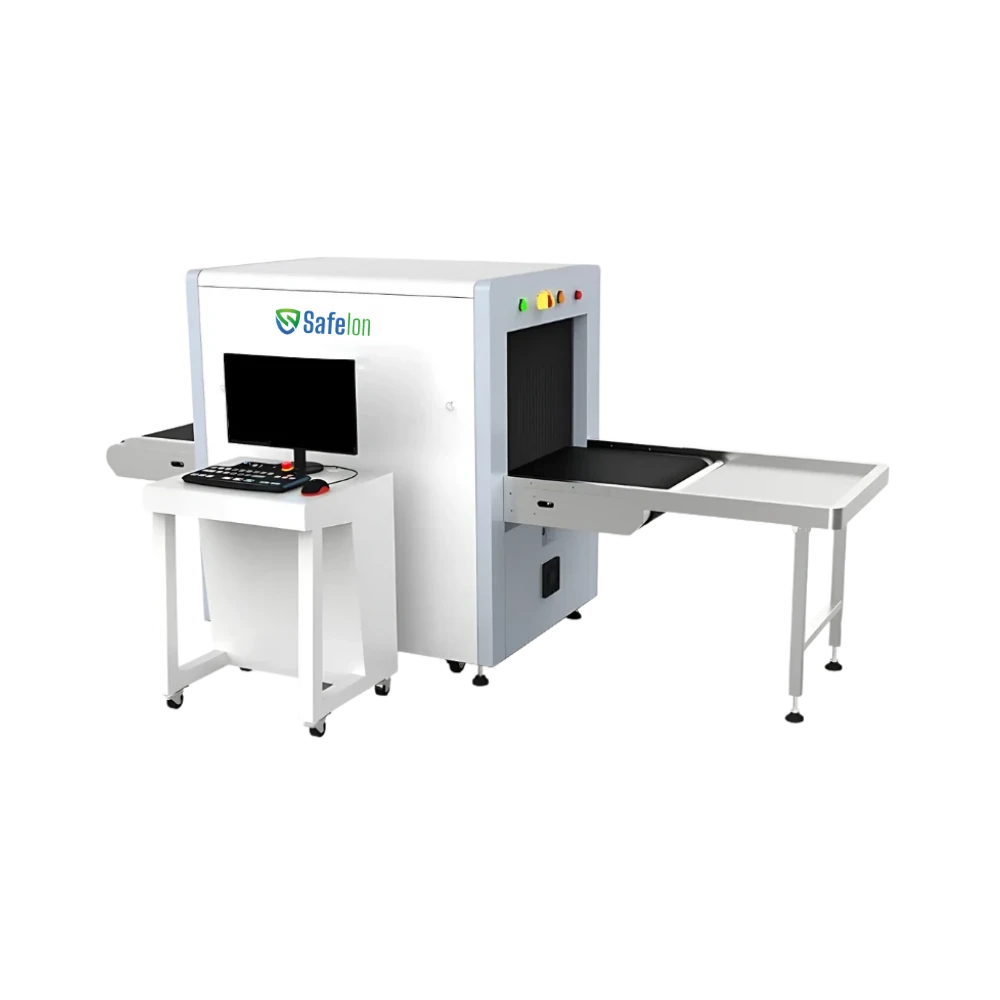

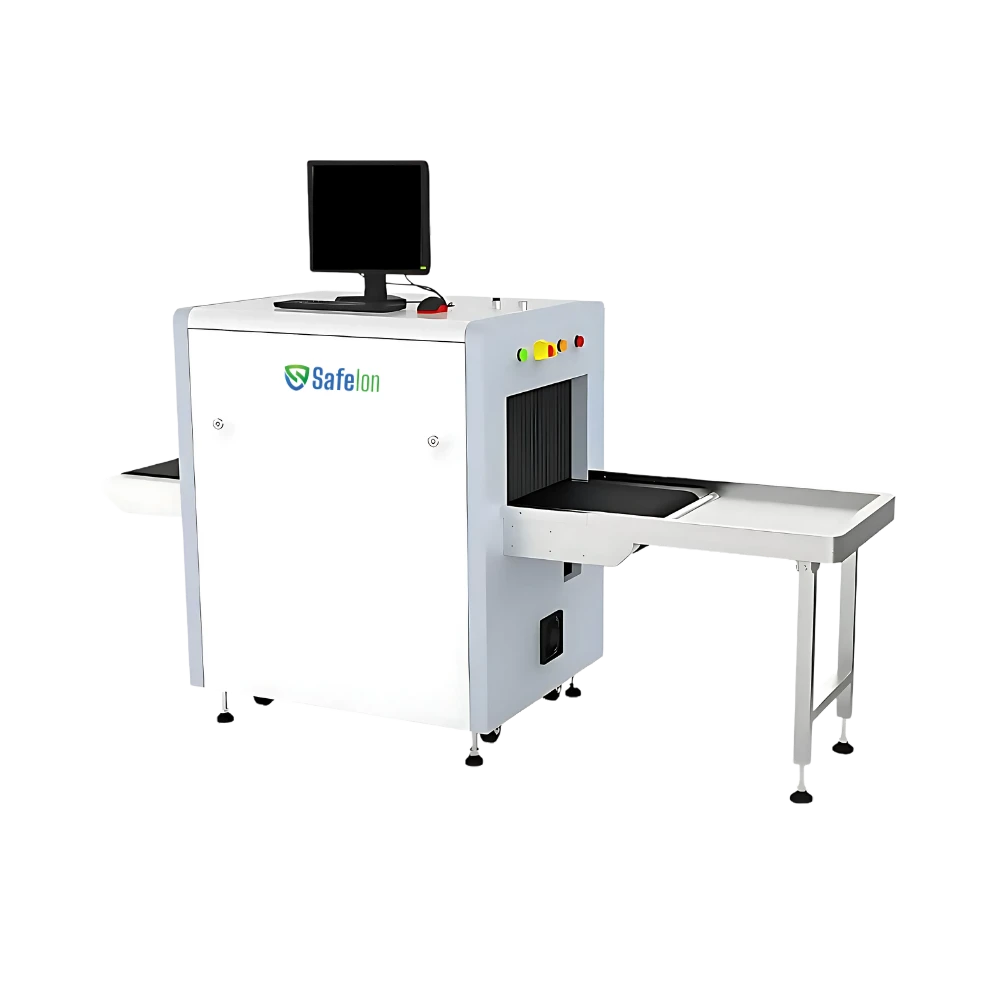

X-Ray Baggage Scanner SFXS-203 delivers smooth and efficient scanning with a conveyor speed of 0.2 m/s. It incorporates advanced drugs and explosives detection technology to ensure higher levels of security. Equipped with a secure access key to prevent unauthorized access. Built-in maximum load capacity of 100 kg ensures reliable performance. Our X-Ray Baggage Scanner is suitable for inspecting bags and parcels at airports, shopping centers, and transit stations.
Specifications
| Conveyor Speed | 0.2 m/s |
| Conveyor Max Load | 150 Kg |
| Operation System | Windows |
| Wire Resolution | AWG40 |
| Penetration Resolution | AWG34 |
| Energy | Dual |
| Spatial Resolution | Vertical: 1.0mm, Horizontal: 1.0mm |
| Grayscale and Mixture Resolution | 1 to 60 mm |
| Organic Matter Resolution | 1 to 120mm |
| Inorganic Object Resolution | 0.2 to 14 mm |
| Penetration | 38 mm |
| X-Ray Dosage Each Inspection | ≤4.5 µSv |
| Boundary Leakage | <1 µSv/h |
| S/N Ratio | <60 dB |
| Film Safety | ASA/ISO1600 Film |
| Operation Temperature | 5℃ to 40℃ |
| Operation Humidity | 0% to 90% |
| Storage Temperature | -20℃ to 60℃ |
| Storage Humidity | 10% to 90% |
| Atmospheric Pressure | 86 kPa to 106 kPa |
| Generator | One |
| X-Ray Generator | 140KV, Oil Cooling, From Bottom to Top |
| Image Storage | 50000 Images |
| Monitor | 21.5 inch LED Screen, 1920 × 1080 Pixels |
| Operation Console | Single Screen Console |
| Power Consumption | 0.8 kW |
| Leakage Current | ≤5.0 mA |
| Power Supply | 220V (±10% to 15%), 50±3Hz |
| Tunnel Dimension | 650 × 500 mm |
| Gross Weight | 510 Kg |
Features
Applications
X-Ray Baggage Scanner SFXS-203 is used for inspecting briefcases, parcels, express mail, hand luggage, and small items in government offices, transport hubs, logistics centers, courts, prisons, embassies, factories, schools, hospitals, stadiums, exhibition centers, and entertainment venues.
Standard Accessories
X-ray generator
Console with Monitor
Keyboard and Mouse
Extended table
Power Cable
Electric drum
Safelon X-Ray Baggage Scanner delivers sharp and consistent image quality using advanced sensors and enhanced zoom capabilities. They are designed to accurately detect concealed threats while minimizing false positives during high-volume screening. These are built for non-intrusive inspections and uphold strict safety standards for both operators and travelers. Our X-Ray Baggage Scanner supports vital security operations in airports, metro stations, and private facilities with intelligent control and maximum efficiency.
